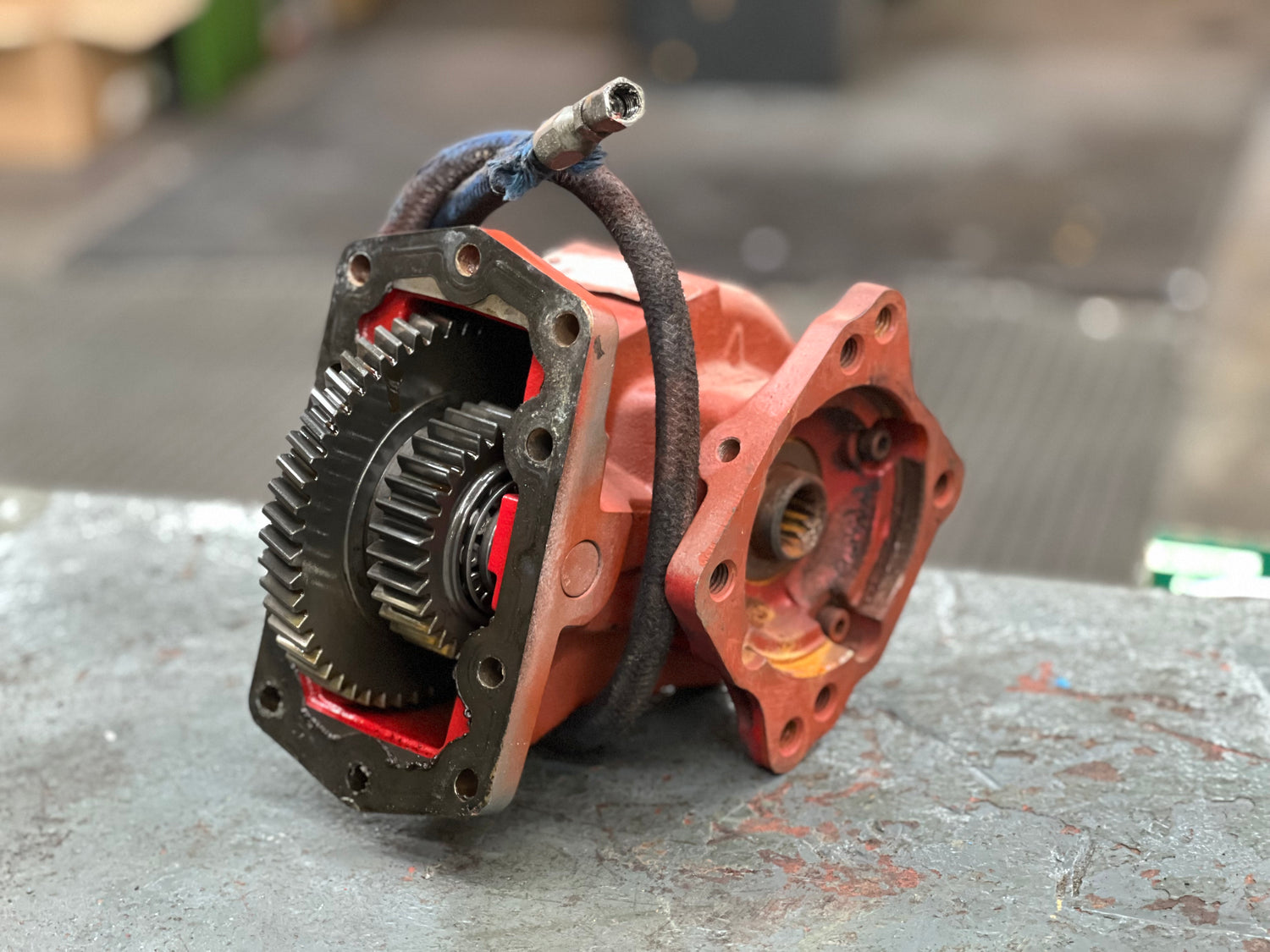

Chelsea 267XGFJP-M5XK PTO (POWER TAKE OFF), 10 BOLT, Part # C1-P-583, OFF ALLISON
Description
Description

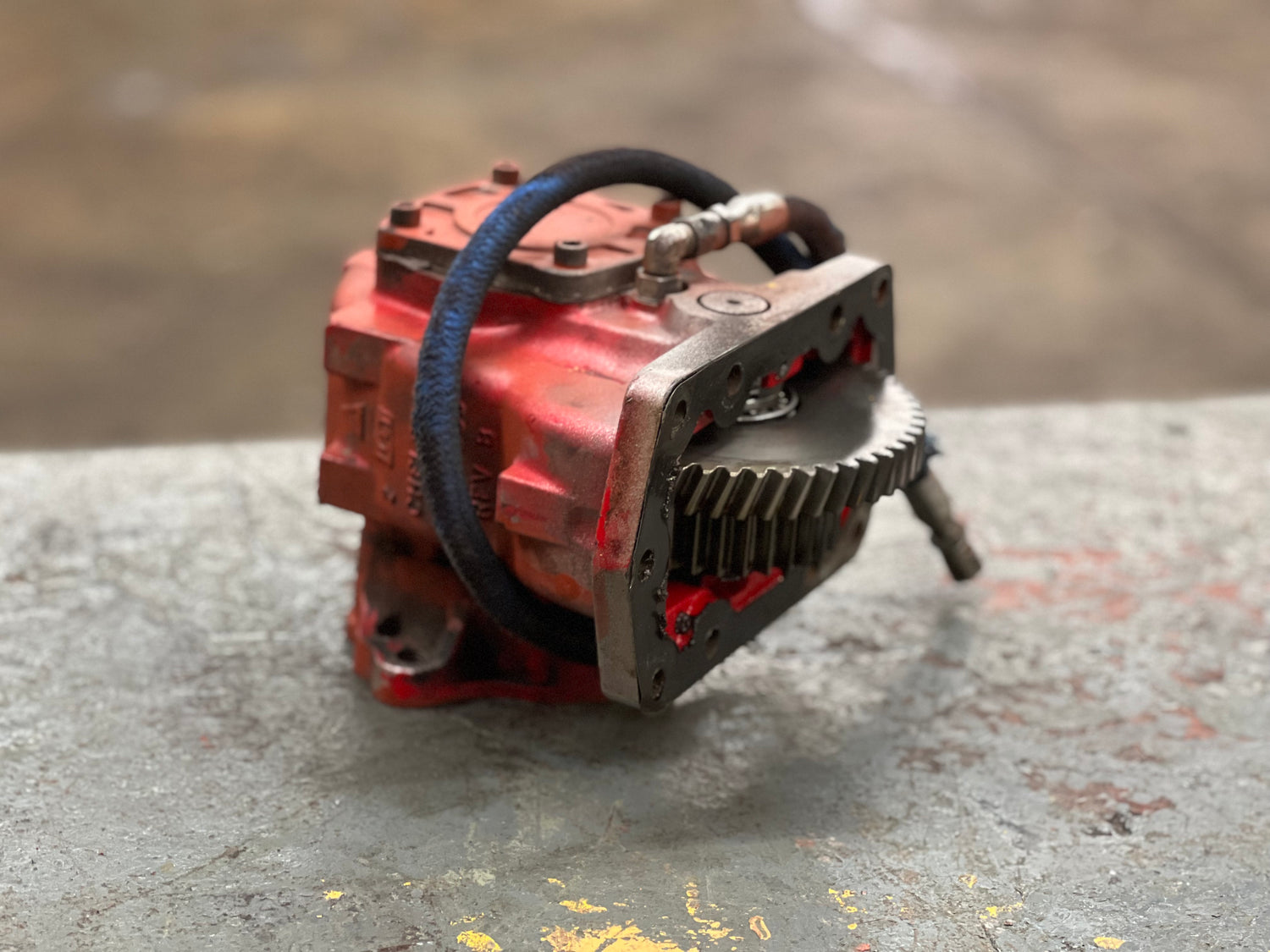

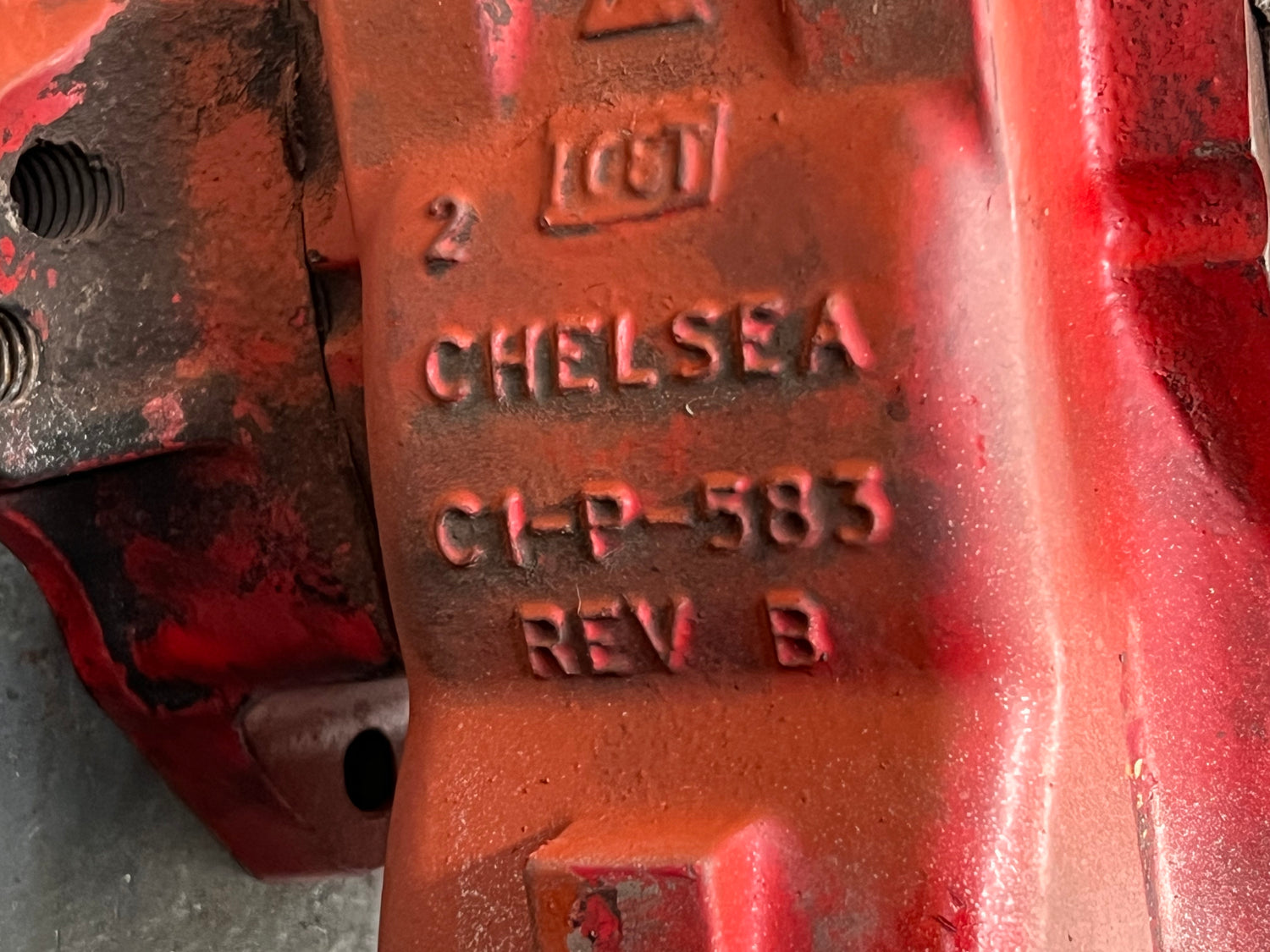

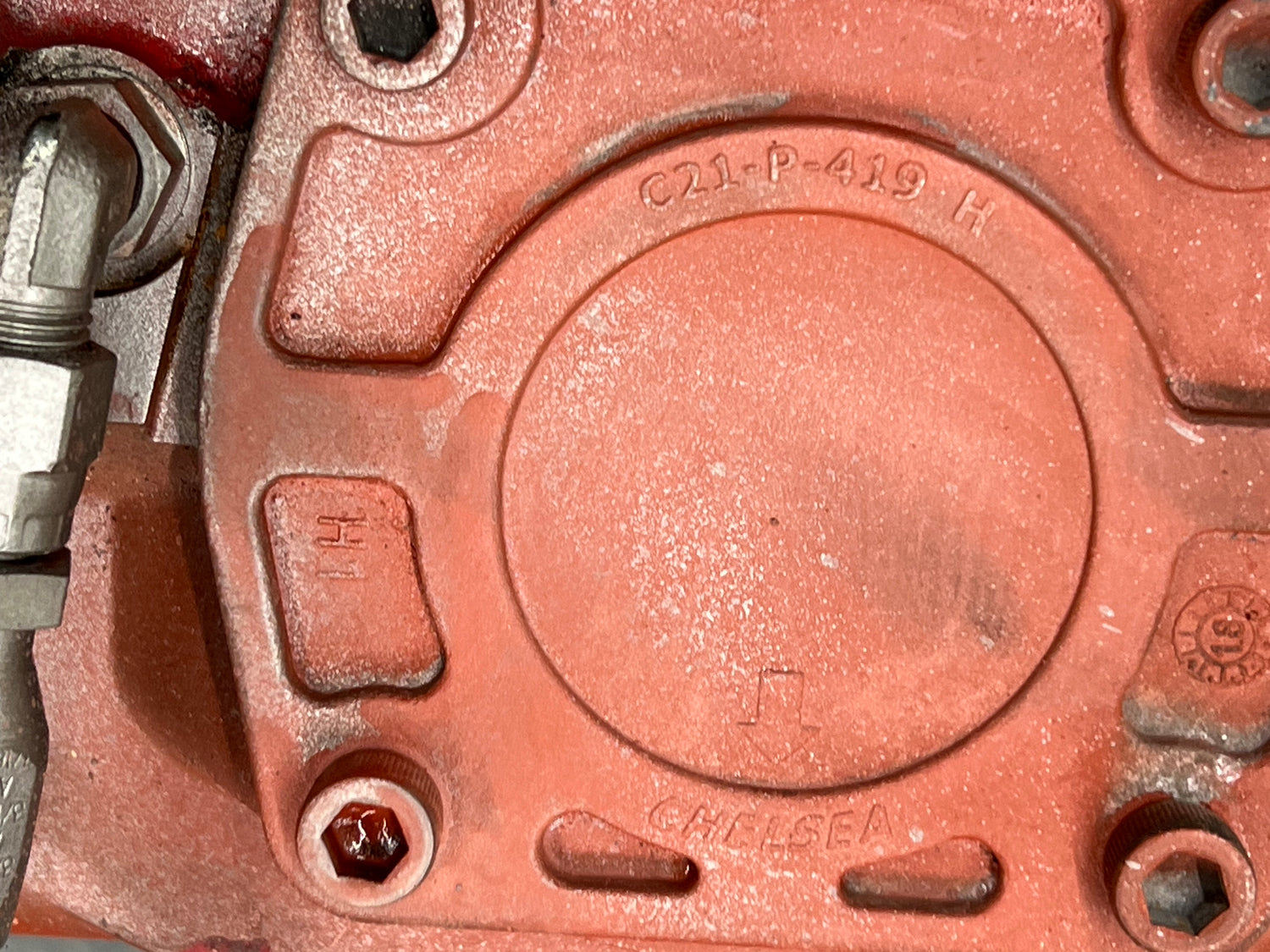

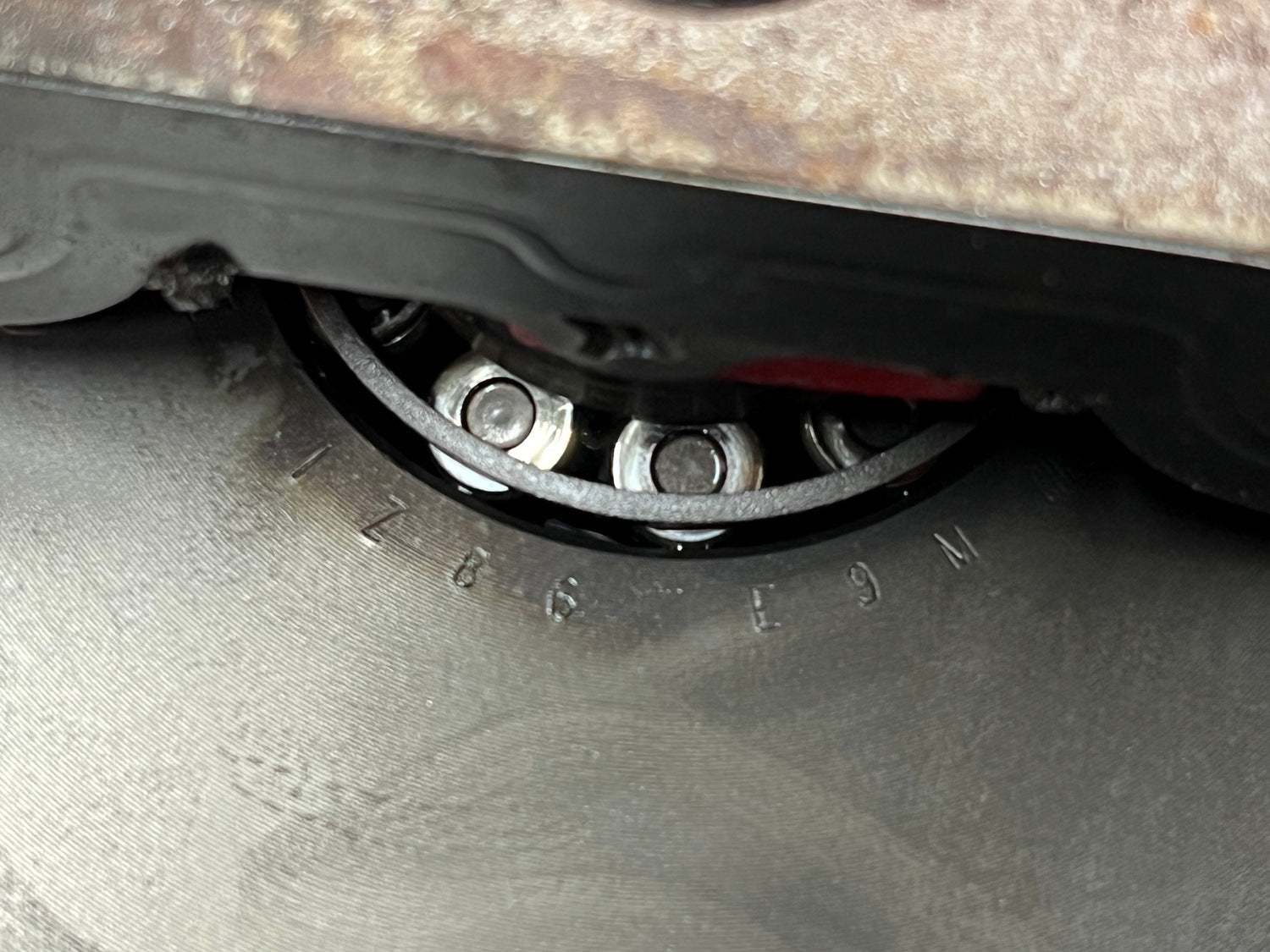

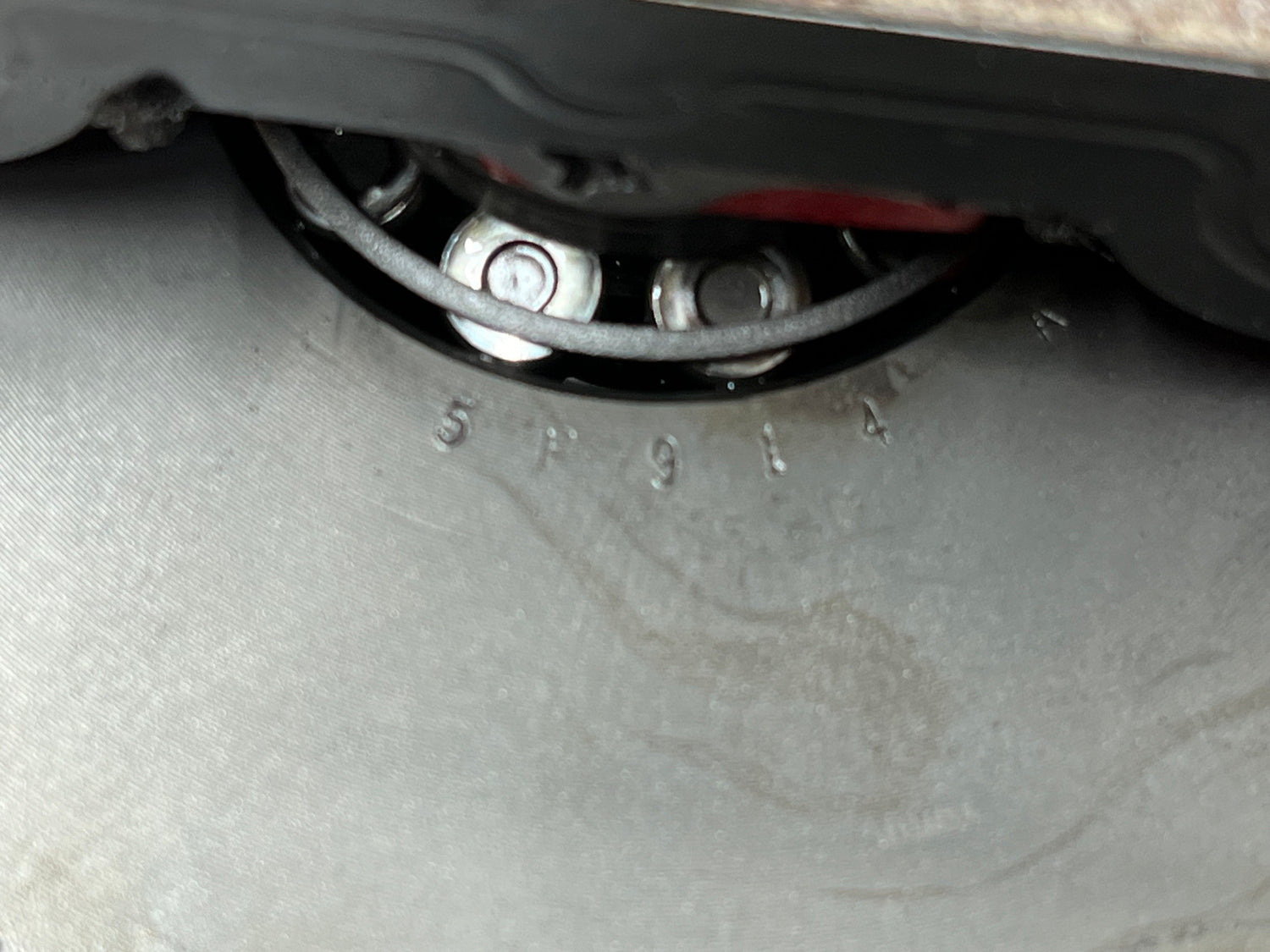

(GOOD USED) CHELSEA Parker PTO (Power Take Off) 267 Series For Sale, Model # 267XGFJP-M5XK, 10-BOLTS, Part # C1-P-583, C1 P 583, C1P583, REV B, 2150K, Bearing Cap Cover Part # C21-P-419 H, C21 P 419 H, Pulled From A ALLISON Transmission, Serial # 91756, Stock # 8231

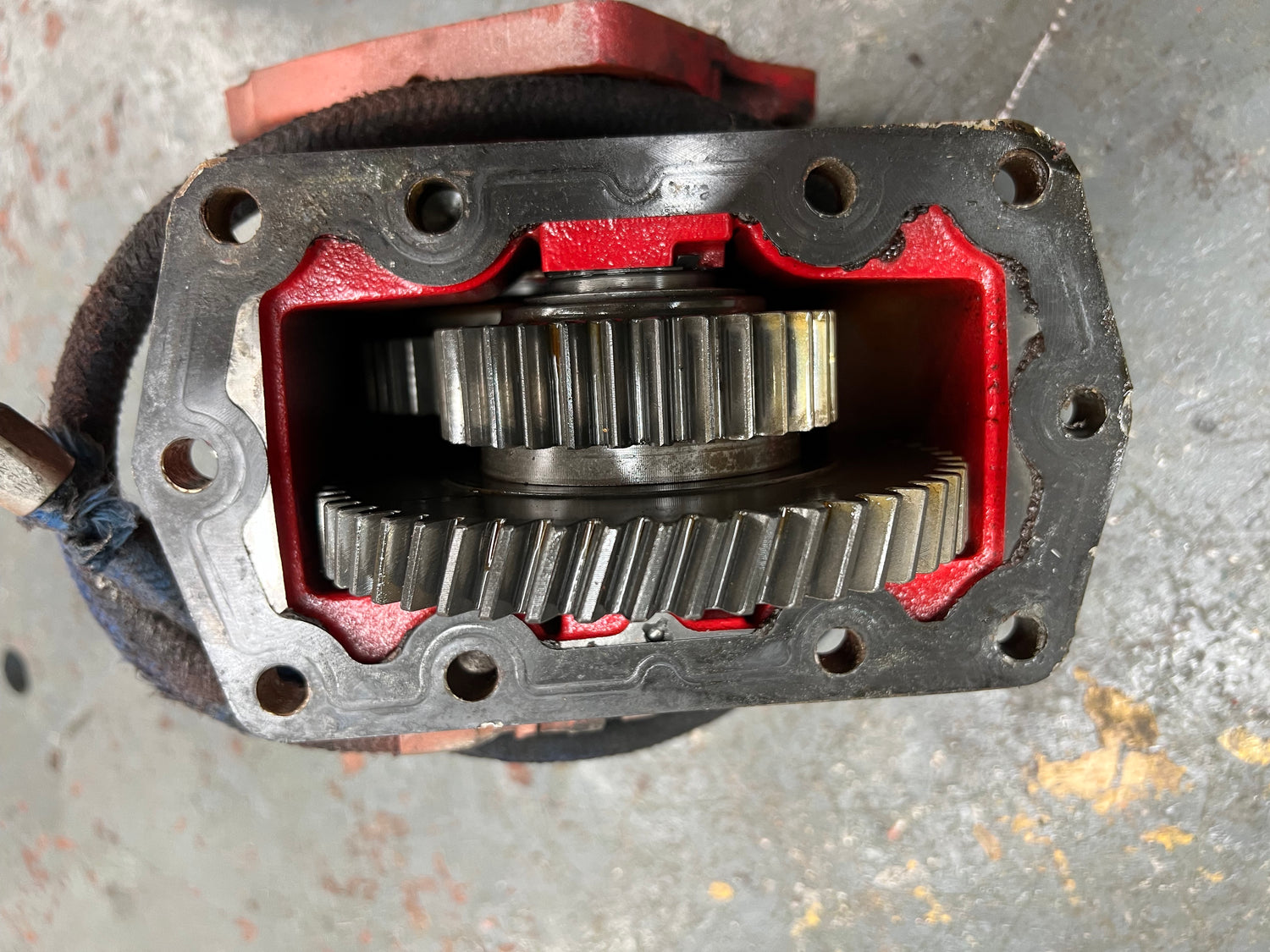

One Speed - Two Gear - Constant Mesh

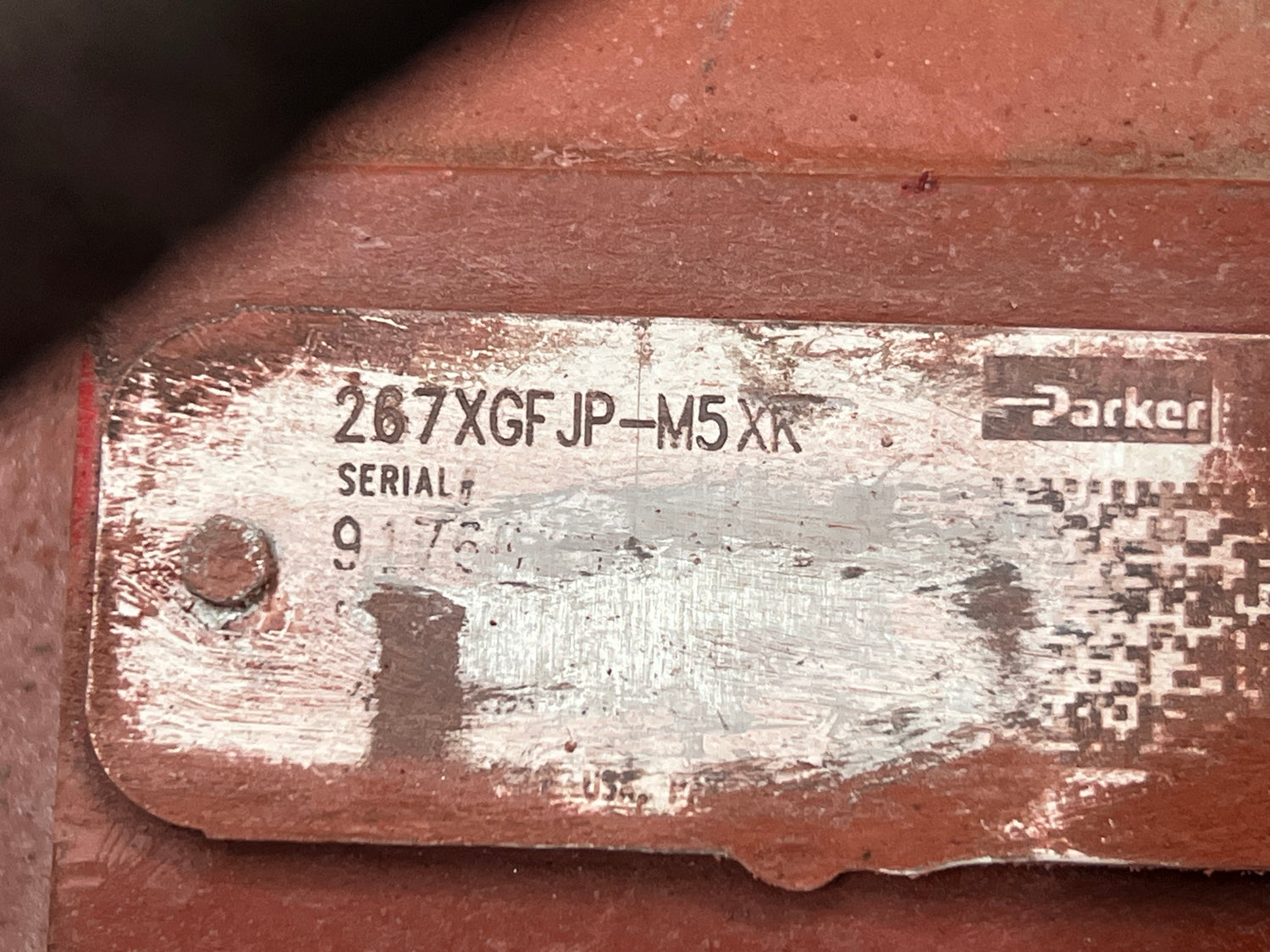

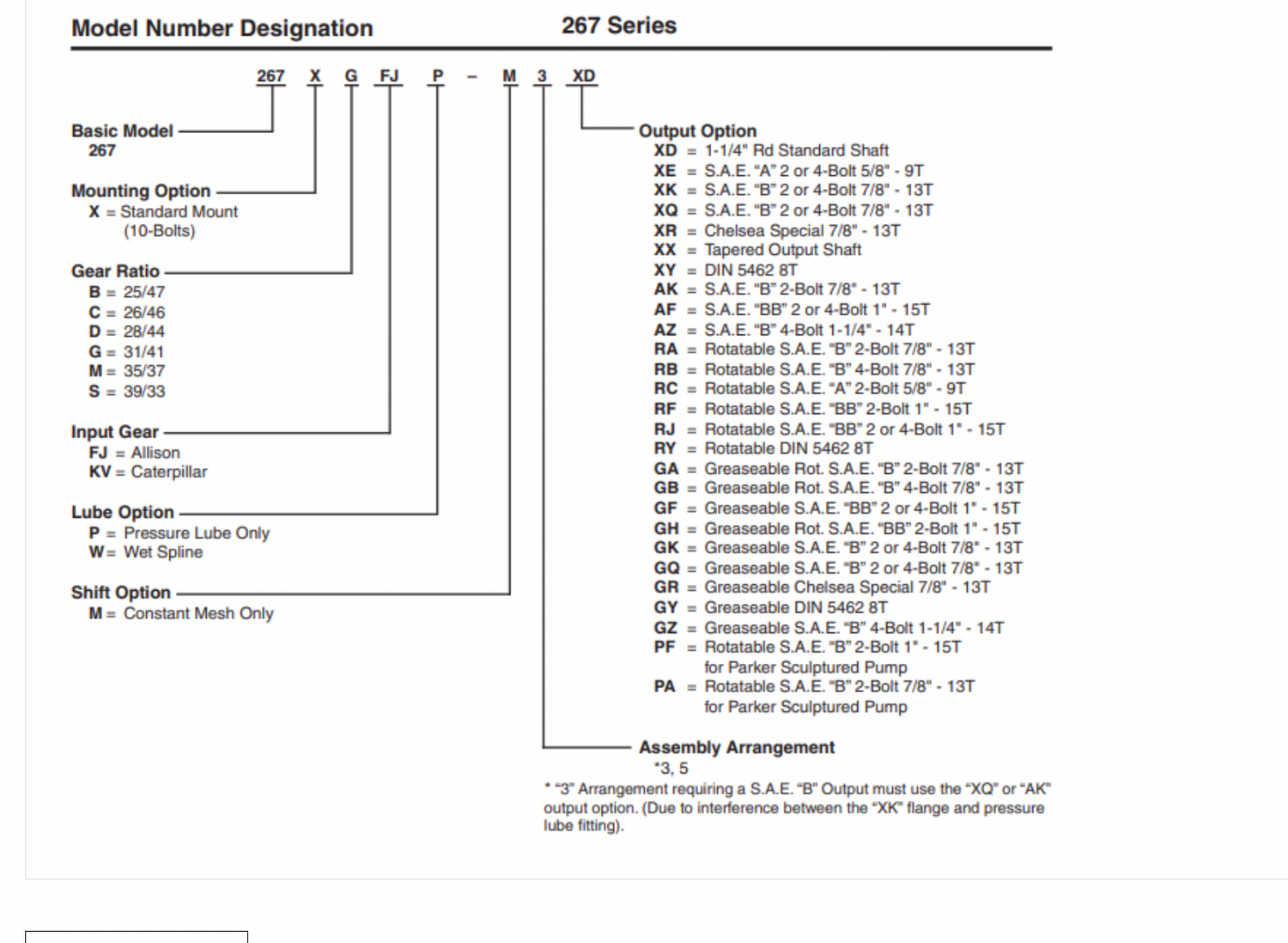

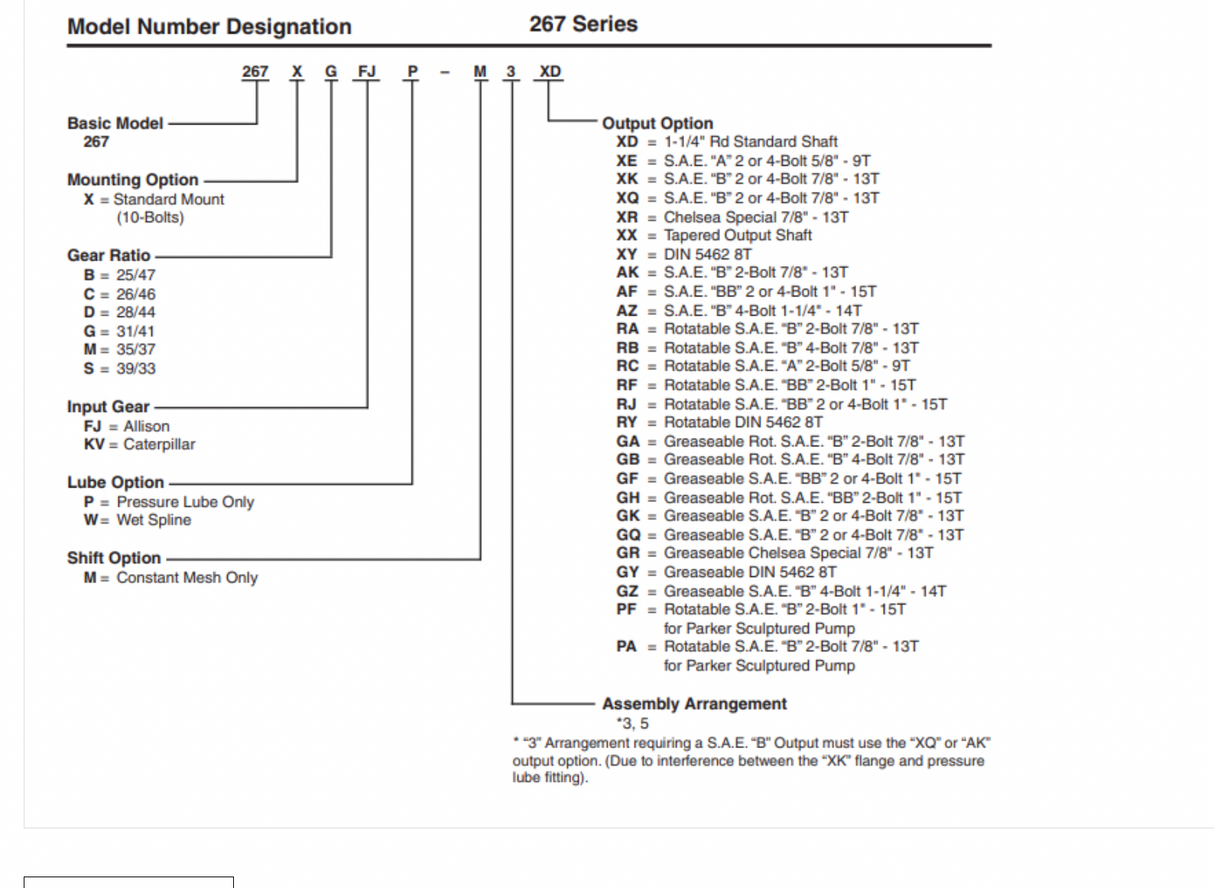

Model: 267XGFJP-M5XK
10-BOLT PTO
267 - Basic Model
Mounting Option: Standard Mounting
Gear Ratio: G
Input Gear Designator: FJ
Lubrication: P - Pressure Lubrication
Shift Option: M - Constant Engagement No Shifter (Constant Mesh)
Assembly Arrangement: 5

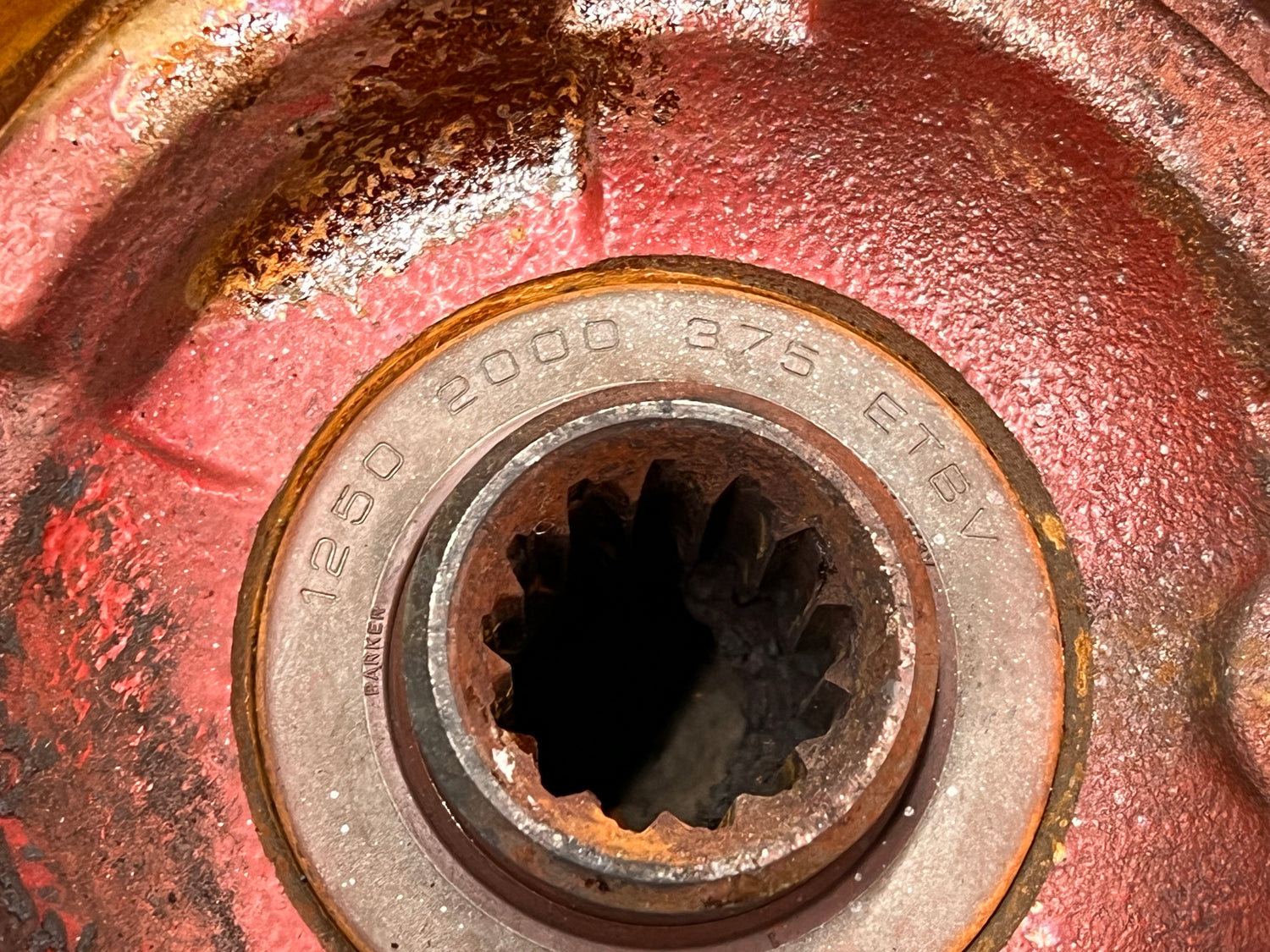

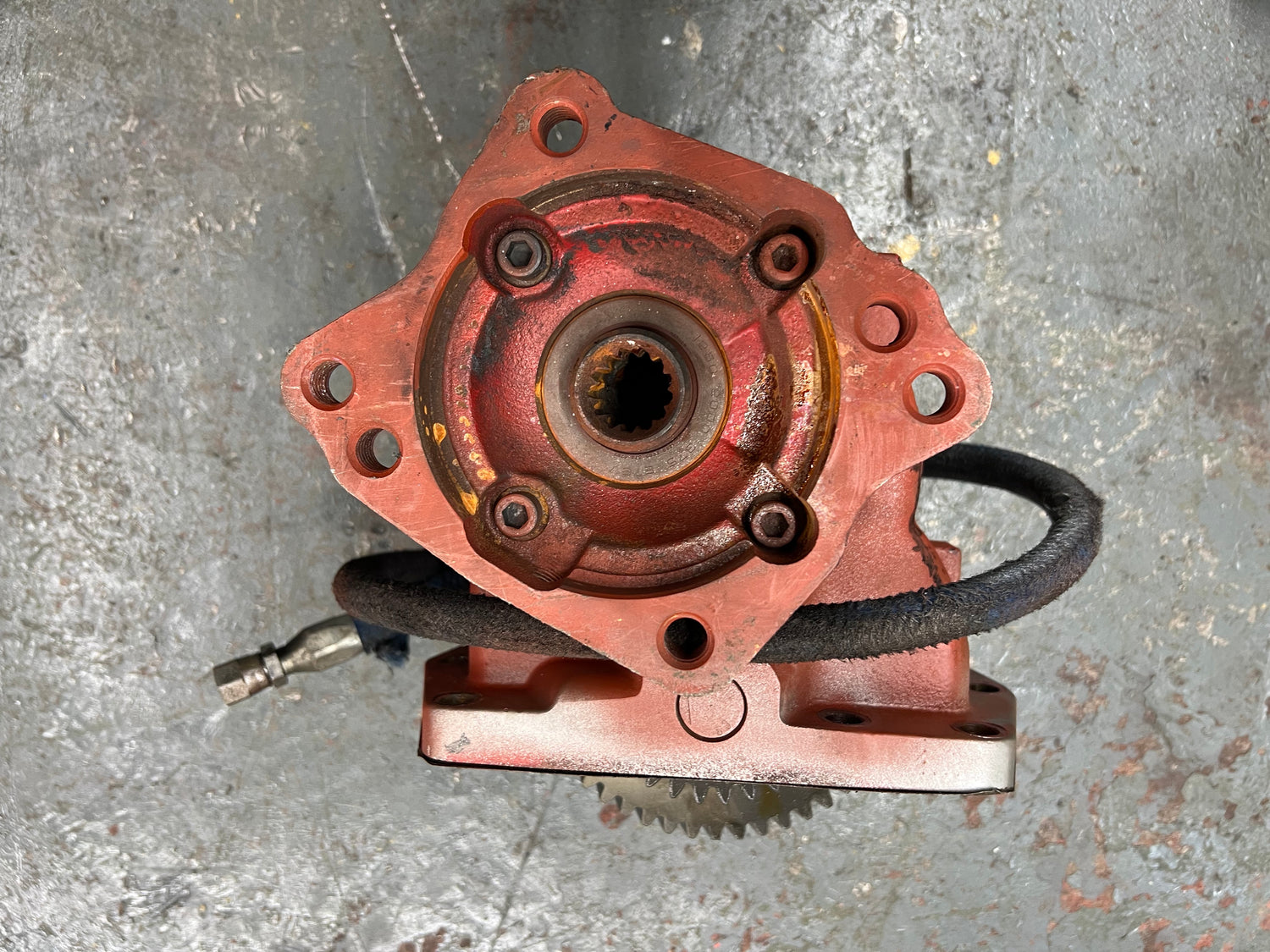

Output Option: XK - S.A.E āBā 2 or 4 Bolt 7/8ā 13T (TOOTH SPLINED (B))
PUMP SUFFIX: XK (WET SPLINE)Ā
Kit Number: 328591-157X
Assembly: 3, 4, 5 & 6
Flange Type: SAE B 2Ā
Shaft Type (SAE) 7/8ā - 13 Tooth Slipped (B)
NOTE: Use 329097-1X to convert PTOs with AK, XP, XQ, XN, or XK output to the self-lube pump option.
Technical Specifications
Output Type: Ā Ā SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
Intermittent Torque: Ā Ā 301 to 400 lb-ft, 401 to 500 Nm, 335 lb-ft (Check Application Pages for Actual Torque Ratings), 454 Nm (Check Application Pages for Actual Torque Ratings)
Transmission Manufacturer: Ā Ā Allison
Mounting Type: Ā Ā 10-Bolt
Lubricant: Ā Ā P = Pressure Lube, W = Wet Spline
Output Shaft Type: Ā Ā 1-1/4" Tapered Output Shaft W/ Keyway, Round Shaft (1-1/4" - 5/16" Key), SAE B (7/8" - 13T) Pump Spline, SAE C (1-1/4" - 14T) Pump Spline, SAE A (5/8" - 9T) Pump Spline, DIN 5462 Pump Spline, 3/4" - 11T Pump Spline, SAE BB (1" - 15T) Pump Spline
Output Power: Ā Ā 56+ HP, 41 to 50 kW
Continuous Operation: Ā Ā Yes with 30% de-rating
Shift Type: Ā Ā Constant Mesh
Shaft Power: Ā Ā 32 HP (500 RPM), 64 HP (1000 RPM), 24 kW (500 RPM), 48 kW (1000 RPM)
All our PARTS are TESTED and Ship PRIORITY MAIL! OVERNIGHT SHIPPING options are available! Contact us for more information! CALL (305)688-1101
