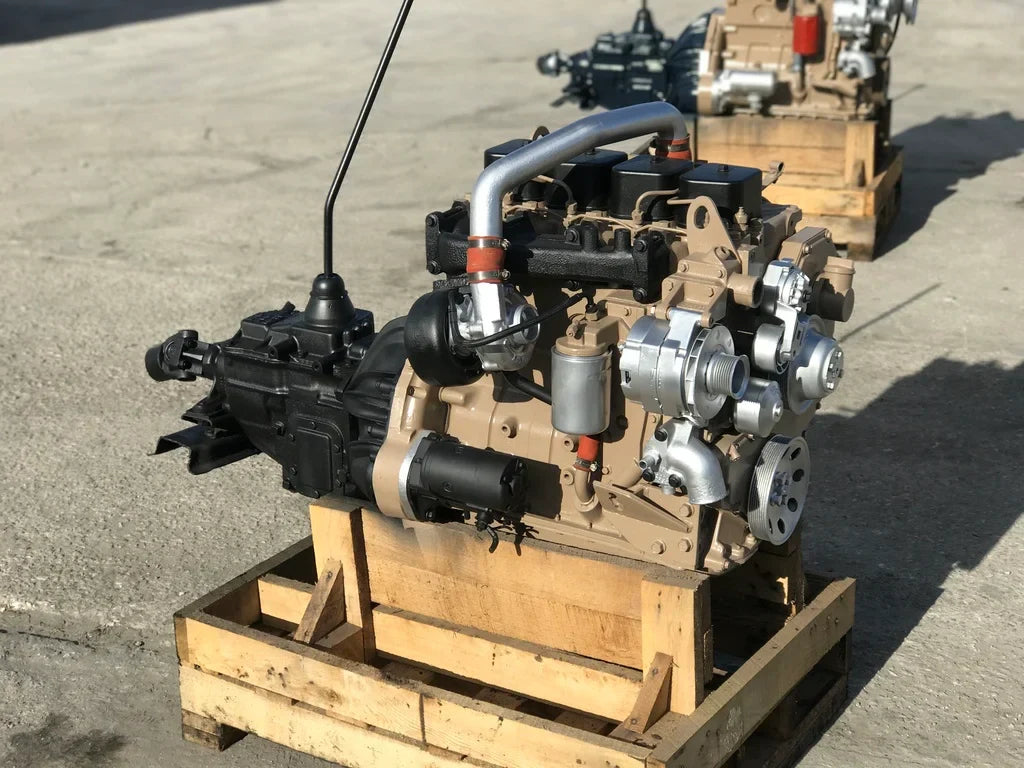

The Cummins 4BT 3.9L Diesel Engine — Complete Technical Guide

If there is one diesel engine that has achieved near-legendary status among mechanics, engine builders, and off-road enthusiasts, it is the Cummins 4BT. Known for its durability, simplicity, massive low-end torque, and industrial heritage, the 4BT is essentially a compact, four-cylinder version of the famous 5.9L 6BT Cummins used in Dodge Ram trucks.

This article is a deep technical breakdown of the Cummins 4BT 3.9L diesel engine, including its evolution, injection pump variations (VE rotary, P-pump), torque ratings, internal design, and engineering characteristics.

Origins of the Cummins B-Series Engine

The Cummins 4BT belongs to the Cummins B-Series engine family, introduced in the early 1980s. The B-Series was designed as a medium-duty diesel platform for industrial equipment, delivery trucks, agricultural machinery, generators, and marine applications.

The family includes:

4B (naturally aspirated 3.9L)
4BT (turbocharged 3.9L)
4BTA (turbocharged and aftercooled)
6BT (5.9L 12-valve Cummins)
ISB and later electronic versions
Modern QSB common rail engines

One of the most important things to understand is that the 4BT is basically a 6BT minus two cylinders. They share many internal components including pistons, rods, injectors, bore, and stroke dimensions.

Cummins Engine Naming Explained

Cummins engine names actually mean something:

4 = number of cylinders
B = B-Series engine family
T = Turbocharged
A = Aftercooled (intercooled)

So:

4B = Naturally aspirated
4BT = Turbocharged
4BTA = Turbo + Aftercooled
4BTA 16-valve = Later high-flow head version

Basic Engine Specifications (Cummins 4BT 3.9L)

Here are the core engine geometry specs:

Specification	Value
Displacement	3.9L (239 cubic inches)
Configuration	Inline 4 cylinder
Bore	4.02 in
Stroke	4.72 in
Compression ratio	~17.5:1
Valves	2 per cylinder (early), 4 per cylinder (later)
Firing order	1-3-4-2
Oil capacity	~10 quarts
Weight	750–780 lbs

The long stroke is one of the reasons the engine produces so much torque at low RPM.

Engine Block and Internal Construction

The Cummins 4BT is built like industrial equipment, not like a passenger car engine.

Block

Cast iron deep skirt block
Extremely thick cylinder walls
Parent bore cylinders (no wet liners)
Massive main bearing caps
Designed for continuous duty operation

Crankshaft

Forged steel crankshaft
Very large journals
Extremely durable
Built to handle heavy loads at low RPM

Connecting Rods

Forged steel
Thick beam design
Cap screw rods
Very strong compared to light-duty diesel engines

Pistons

Direct injection bowl pistons
Oil-cooled pistons
Heavy compression rings

Oil System

Gear-driven oil pump
Oil cooler
Piston cooling jets
Wet sump system

Timing System

One of the most important features of the 4BT:
It uses a full gear-driven timing system.

The gear train drives:

Camshaft
Injection pump
Oil pump
Vacuum pump
Air compressor (if equipped)

There are no timing belts and no timing chains, which greatly increases engine life and reliability.

Valve Train Design

The engine uses a traditional diesel valvetrain:

Camshaft in block
Pushrods
Rocker arms on a shaft
Solid lifters
Adjustable valve lash

Typical valve lash settings:

Intake: 0.010"
Exhaust: 0.025"

Cummins 4BT Variants and Evolution

1. 4B Naturally Aspirated

No turbo
Industrial engines
Around 53 horsepower
High compression ratio (~18.5:1)

Used in generators, pumps, and agricultural equipment.

2. Early 4BT (Turbocharged)

Produced mainly in the 1980s and 1990s.

Typical specs:

105 horsepower
265 lb-ft torque
8 valve head
Mechanical injection
Usually no intercooler
Used in bread trucks and step vans

These engines are the most commonly found for engine swaps.

3. 4BTA (Turbo Aftercooled)

Later and more powerful version.

Features:

Intercooler / aftercooler
Lower compression ratio
Higher boost pressure
Often 16-valve head
Higher torque and horsepower

Typical ratings:

170 hp
420 lb-ft torque

Marine versions can exceed 200 hp.

Fuel Injection Pump Variations (Very Important)

The injection pump is one of the biggest differences between 4BT versions.

Bosch VE Rotary Pump

This is the most common pump found on bread truck engines.

Characteristics:

Rotary distributor pump
Single plunger
Mechanical governor
Boost fuel pin
Mechanical timing advance
Compact design

Typical engine ratings with VE pump:

105 hp / 265 lb-ft
120 hp / 300 lb-ft
130 hp / 330 lb-ft

These pumps are easy to tune by adjusting:

Fuel screw
Star wheel
Fuel pin
Governor spring

Bosch P7100 Inline Pump (P-Pump)

This is the most desirable injection pump.

Characteristics:

Inline injection pump
Individual plunger per cylinder
Driven by engine gear train
Own internal camshaft
Extremely high fuel delivery capability
Mechanical governor
Adjustable fuel plate
Adjustable timing

Typical ratings with P-pump:

130 hp / 350 lb-ft
150 hp / 400 lb-ft
170 hp / 420 lb-ft

The P7100 pump is also used on the legendary 12-valve 5.9 Cummins.

Electronic Pumps (Rare on 4BT)

Some later engines used electronic rotary pumps similar to the VP44, but these are much less common on the 3.9 platform and are mostly seen on later 5.9 engines.

Factory Torque and Horsepower Ratings

Here is a simplified table of common factory ratings:

Engine Version	Injection Pump	HP	Torque
4B Naturally Aspirated	Mechanical	53 hp	~150 lb-ft
Early 4BT	VE Rotary	105 hp	265 lb-ft
4BT Industrial	VE Rotary	120 hp	300 lb-ft
4BT P-Pump	P7100	130 hp	350 lb-ft
4BTA Aftercooled	P7100	170 hp	420 lb-ft
Marine 4BTA	P7100	200 hp	~450 lb-ft

Turbochargers Used on the 4BT

Common turbochargers:

Holset H1C
Holset WH1C
Holset HX30
Holset HX35
Holset HX40 (marine/high power)

Typical factory boost levels:

Early engines: 12–18 psi
Intercooled engines: 18–25 psi

Why the Cummins 4BT Vibrates So Much

This is a very important mechanical characteristic.

Reasons:

Inline 4 cylinder diesel
Very large pistons
Long stroke
Heavy rotating assembly
High compression
No balance shafts

The engine produces significant vibration compared to the 6BT inline-six engine.

Physical Dimensions

Dimension	Measurement
Length	~30.6 in
Width	~24 in
Height	~37.7 in
Weight	~750–780 lbs

This compact size is why the engine is popular for swaps into:

Jeeps
Toyota trucks
Land Rovers
Ford Rangers
Boats
Tractors
Rock crawlers

Why the Cummins 4BT Is So Durable

The 4BT is known to run 500,000 to 1,000,000 miles in industrial applications.

Reasons:

Gear-driven timing
Forged steel crankshaft
Thick cast iron block
Low RPM operation
Mechanical fuel injection
Oil-cooled pistons
Industrial duty cycle design
Simple electronics (often none)

This engine was designed to run all day at constant RPM, not for passenger cars.

Cummins 4BT Evolution Timeline

Year	Engine Development
Early 1980s	4B Naturally Aspirated
Mid 1980s	4BT Turbo
Late 1980s	VE Rotary Pump engines
Early 1990s	P7100 Inline Pump
Late 1990s	4BTA Aftercooled
2000s	Electronic versions
Modern	QSB Common Rail engines

Final Thoughts

The Cummins 4BT is one of the most unique diesel engines ever produced because it combines:

Industrial engine durability
Mechanical simplicity
Massive low-RPM torque
Compact size
Compatibility with many transmissions
Huge aftermarket support

It is essentially a small industrial tractor engine that people started putting into trucks, and that is exactly why it became so popular for swaps, off-road builds, marine applications, and heavy equipment.

Even decades after its introduction, the 4BT remains one of the most respected diesel engines ever built.
