⚠️ Before You Start (Critical)

• Engine must be cool
• Disconnect batteries
• Clean workspace (diesel contamination kills turbos)
• Have specs/manual (torque varies per engine)

Why this matters: A turbo spins 80,000–150,000 RPM—any dirt or misalignment = instant failure.

---

🧰 Required Tools & Materials

• Torque wrench (essential)
• Line wrenches (oil lines)
• Penetrating oil
• New:
  • Turbocharger
  • Gaskets (exhaust + oil + intake)
  • Mounting hardware (recommended)
• Anti-seize + high-temp sealant
  (Cat specifically recommends both for exhaust components )

---

🧩 Step-by-Step Installation Process

1. Remove Old Turbo (Baseline)

Typical process:

1. Remove intake piping (charge air pipes)
2. Disconnect oil feed + drain lines
3. Remove exhaust connections
4. Remove turbo (often with manifold)

👉 On engines like the 3126, it’s common to remove the turbo + exhaust manifold together due to tight access

---

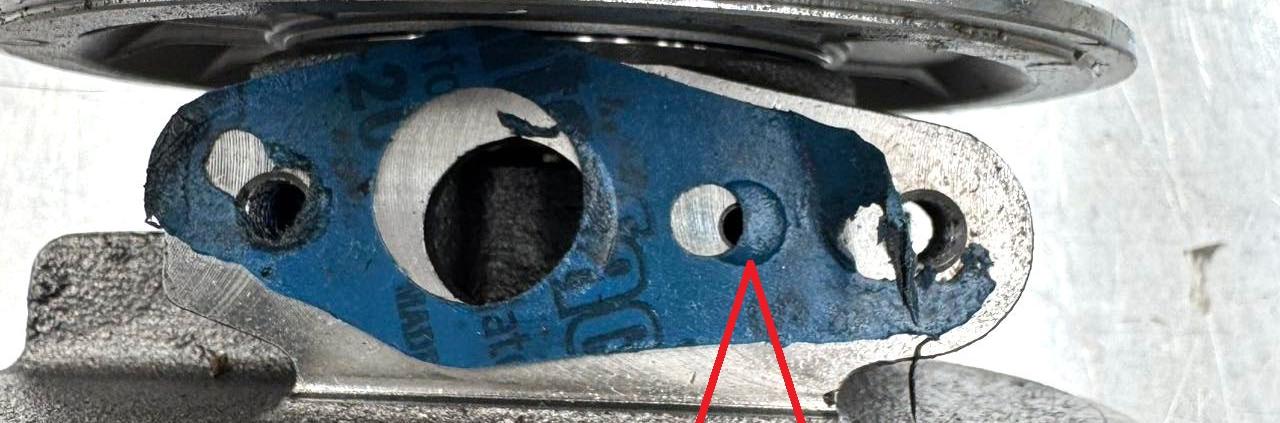

2. Inspect & Prep Mounting Surfaces

• Clean:
  • Exhaust manifold flange
  • Oil feed/return ports
• Remove ALL old gasket material
• Check:
  • Cracks in manifold
  • Oil contamination

⚠️ Even a tiny gasket leak = boost loss + overheating

---

3. Pre-Lube the Turbo (VERY IMPORTANT)

Before installing:

• Pour clean engine oil into oil inlet
• Spin compressor wheel by hand

👉 Prevents dry start failure (most common rookie mistake)

---

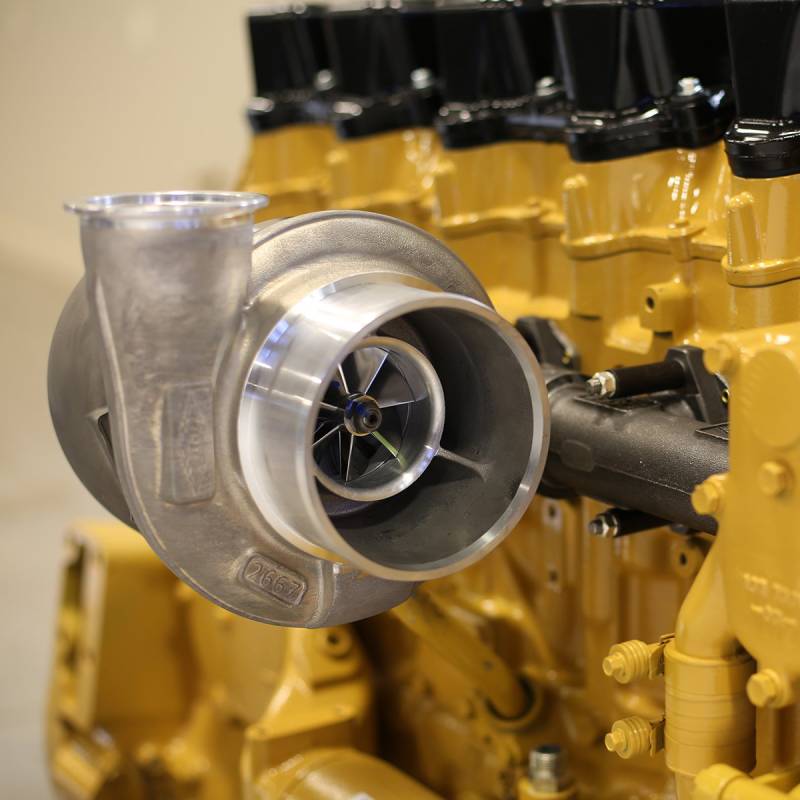

4. Install Turbo onto Manifold

Steps:

1. Place new gasket
2. Set turbo in position
3. Hand-tighten bolts first
4. Torque to spec in sequence

👉 Proper torque sequence is critical (Cat uses staged tightening patterns )

---

5. Connect Oil Lines

• Install oil feed line first
• Then oil drain line
• Ensure:
  • No kinks
  • Perfect alignment

👉 Misalignment causes oil starvation or leaks

---

6. Reconnect Intake & Exhaust

• Charge air piping (to intercooler)
• Air intake
• Exhaust downpipe

✔ Make sure:

• No gaps
• No stress on turbo housing

---

7. Prime the System (CRITICAL STEP)

Before starting engine:

• Disable fuel (or unplug injectors)
• Crank engine 10–15 seconds

👉 This builds oil pressure in turbo before combustion

---

8. First Startup Procedure

1. Start engine
2. Let idle for 5–10 minutes
3. Check:
   • Oil leaks
   • Exhaust leaks
   • Whining/grinding noises

⚠️ DO NOT rev immediately

---

9. Final Checks

• Verify boost pressure
• Recheck all bolts after heat cycle
• Look for:
  • Oil seepage
  • Loose clamps

---

🧠 Pro Tips (From Real Shop Practice)

✔ Always Replace These:

• Turbo oil feed line (if dirty/old)
• All gaskets
• Exhaust studs (if worn)

✔ Common Mistakes:

• ❌ Not priming turbo → instant failure
• ❌ Reusing dirty oil line → contamination
• ❌ Misaligned drain line → oil backup → smoke

✔ Upgrade Insight:

On engines like the 3126:

• Stock turbos are often replaced with higher-flow units
• Requires:
  • Different flanges
  • Boost tuning
  • Fuel adjustment

---

🏁 Summary (Simple Flow)

1. Remove turbo + manifold
2. Clean surfaces
3. Pre-lube turbo
4. Install + torque
5. Connect oil lines
6. Reassemble intake/exhaust
7. Prime oil system
8. Idle + inspect
